grandMA3 onPC 2Port Node 2k PoE

MA Lighting

Art.No.: 4010512-1

What do we need to control real devices? DMX outputs! This is where the grandMA3 onPC xPort Nodes come into play. The nodes fulfill two different tasks: They convert Ethernet data to DMX and they can add parameters to your grandMA3 onPC system. So just download the grandMA3 onPC software, connect a grandMA3 onPC xPort Node and you are ready to control your fixtures!

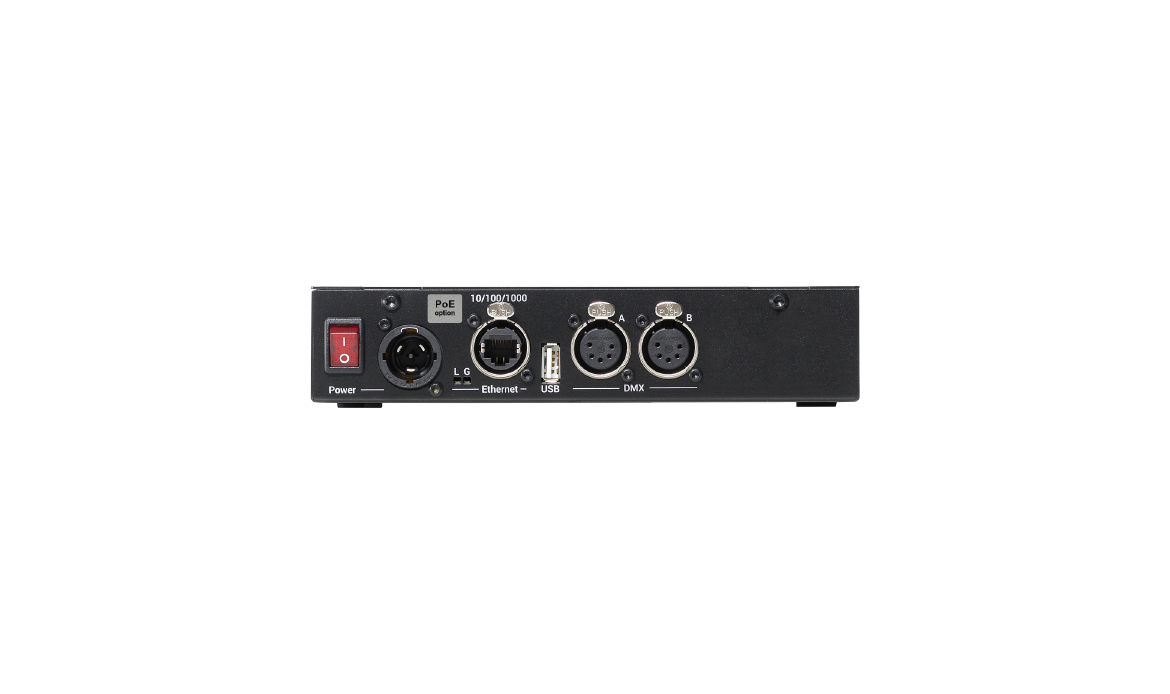

The grandMA3 onPC 2Port Node 2k PoE offers you two DMX outputs on the rear panel. The half-width, 1RU chassis is the perfect size for touring or permanent installations. However, you will also find a wide range of accessories for alternative mounting methods or customization. The node directly enables 4 096 parameters - the maximum for your grandMA3 onPC system!

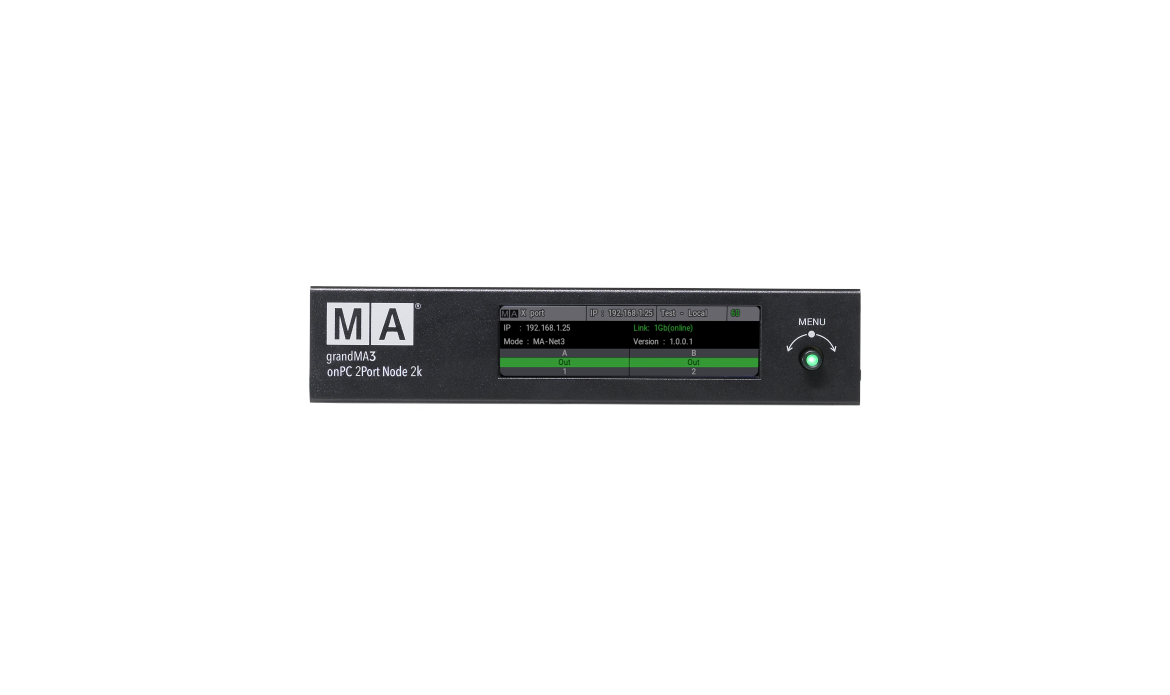

A few more facts? All grandMA3 onPC xPort Nodes can handle MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant and have a 3.9" color display on the front for easy configuration and status overview. A big advantage for installations: The PoE variant (Power over Ethernet) does not require any additional power cabling!
The configuration of your nodes can easily be done via the grandMA3 onPC software. And do not forget - the grandMA3 onPC software offers the same features as the larger consoles. So you get a small, compact and affordable control system without compromising on features for your show!


Supplied with

Additional scope of delivery

1x powerCON TRUE1 socket (NAC3FX-W-TOP) or similar

Technical Specifications

Parameters4 096 (HTP/LTP)
Parameters Mode21 024 (HTP/LTP)
Operating voltage/ Supply voltageAC 100 - 240 V; 50/60 Hz
PoE (IEEE 802.3af; 48 V DC/max. 12 W)
Powermax. 15 VA
Operating Temperature0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions207 x 184 x 43 mm / 9 x 8 x 2 in
(width x depth x height)
Net weight2 kg / 5 lbs
Connectors1 x powerCON TRUE1
1 x etherCON/RJ45
2 x DMX512-A Out (5pin XLR female)
1 x USB 2.0 (type A)
