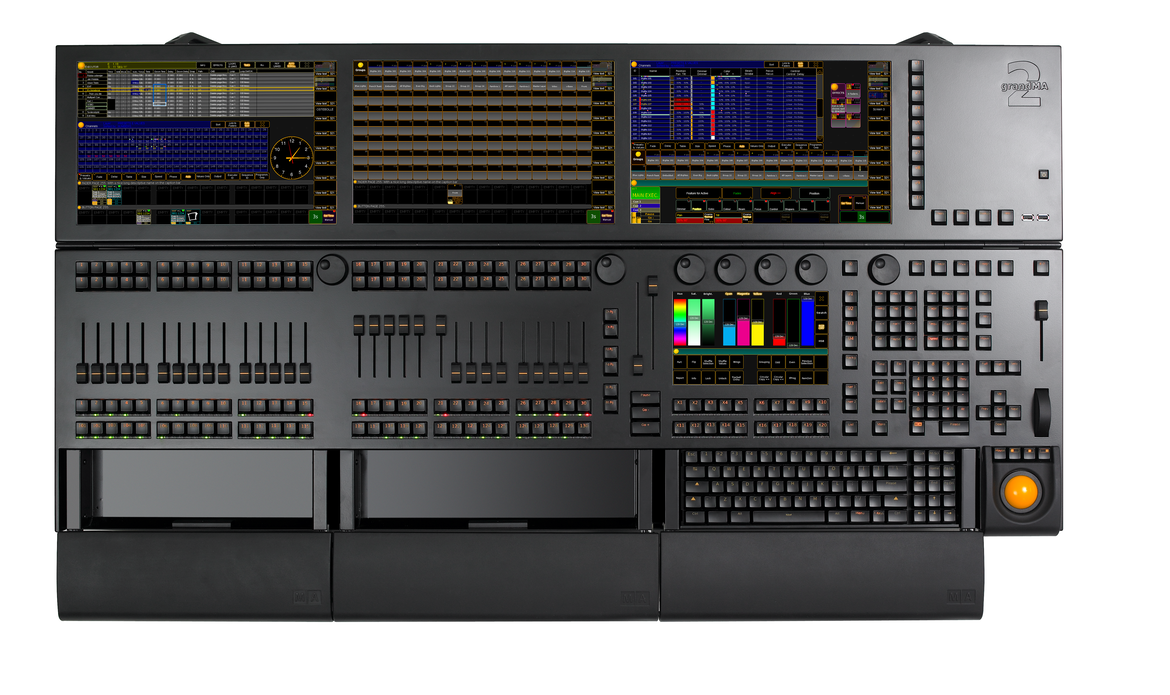

grandMA2 full-size
SV (Silent Version)
Art.No.: 120161

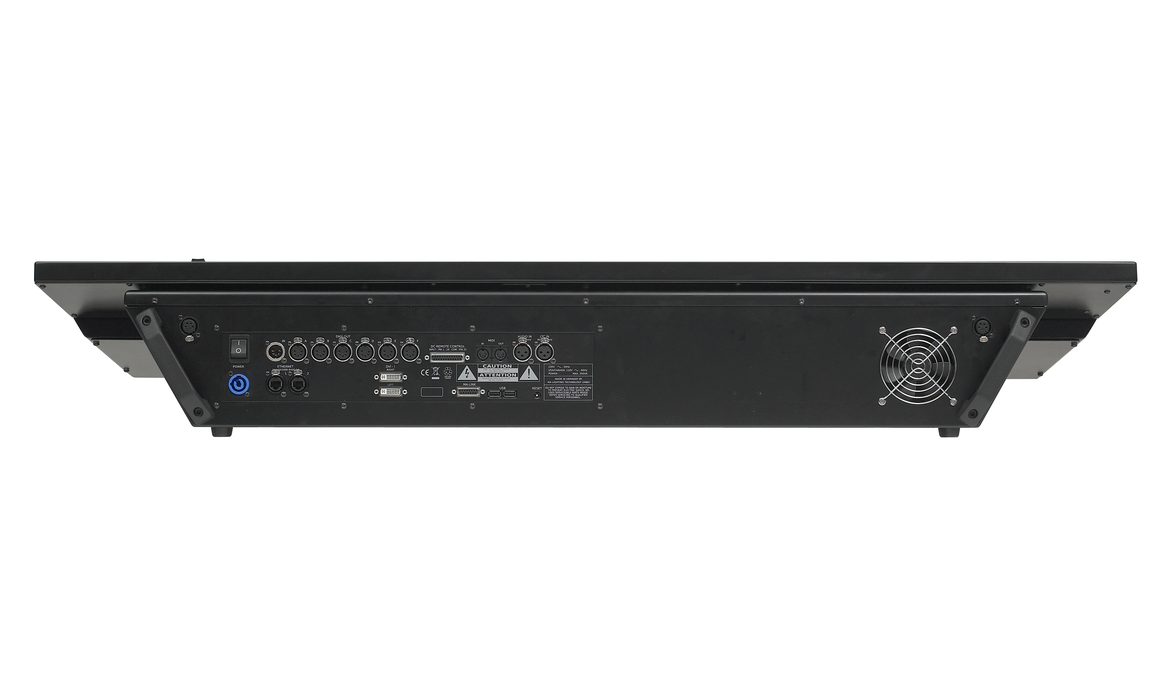

rearside of grandMA2 full-size
The grandMA2 full-size represents MA Lighting’s most powerful console and offers the control of conventional light, moving lights, LED fixtures and media from one platform.

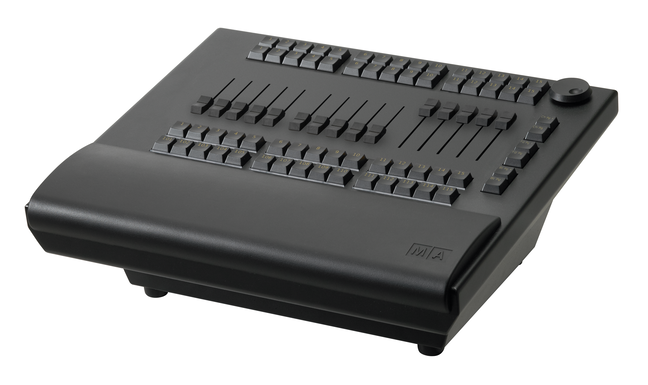

Equipped with the most up-to-date technology and even some special features (e.g. keyboard drawer and multi-touch command screen), the grandMA2 is suitable for all lighting segments. It supplies an intuitive and fast control of all connected fixtures and channels. Furthermore the grandMA2 fader wing provides up to 60 extra motorized executor faders for an almost unlimited number of pages.
Moreover grandMA series 1-showfiles can be converted to be used with the grandMA2. And for yet easier operation, all command keys can be found in the same place on every console of the grandMA2 series. The grandMA2 offers extremely flexible and comfortable ways of programming, including nearly infinite numbers of presets, cues, pages, sequences and effects.
The Silent Version is equipped with an optimised fan and therefore ideally suited for noise-sensitive environments. It fulfills the international standards NC-25 (Noise Criterion, US) and NR-25 (Noise Rating, Europe).
Features

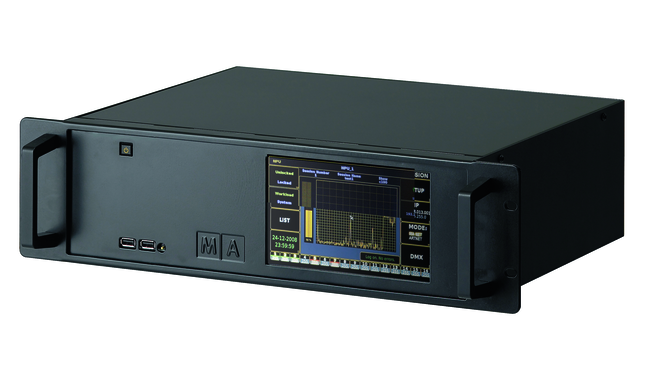

- Real-time control for up to 65,536 parameters per session in connection with MA NPU (equivalent to 256 DMX universes)
- 8,192 HTP/LTP parameters
- 6 DMX outputs
- 3 internal TFT wide mode touchscreens (15.4" WXGA)
- 2 external TFT screens can be connected (UXGA, touchscreens accepted)
- 1 internal command screen – multi-touch (9" SVGA)
- 30 motorized executor faders
- Integrated keyboard drawer
- Built-in uninterruptible power supply (UPS)
- 2 etherCON connectors, 5 USB 2.0 connectors

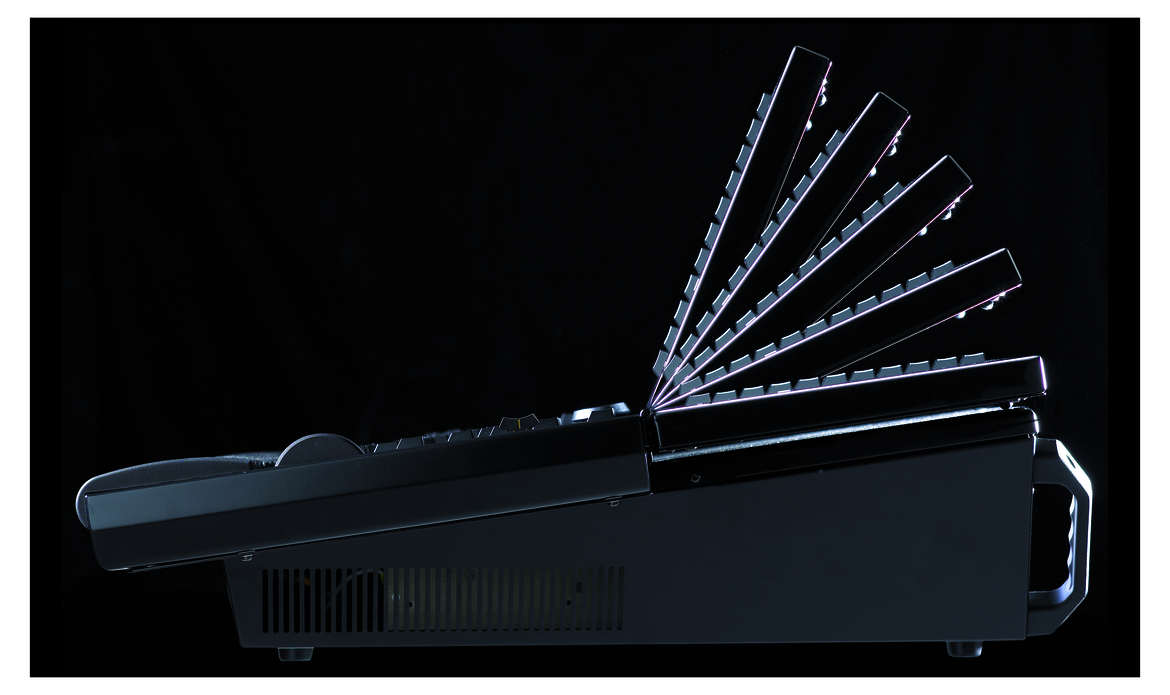

- Motorized monitor wing
- 2 motorized A/B fader 100mm
- Individually backlit and dimmable silent (clickless) keys
Supplied with
Additional scope of delivery
built-in keyboard
Technical Specifications
| Operating voltage/ Supply voltage | 120V/230V, 50/60Hz (automatic detection) |
|---|---|
| Power | 350VA |
| Dimensions | 1,284 x 204 x 661mm / 50.6 x 8 x 26inch |
| Net weight | 46kg / 101lbs |
| Output connectors | 6 x XLR 5pin (DMX) 2 x DVI (external monitor) 2 x etherCON 1 x MA Link (grandMA2 fader wing) 5 x USB 1 x DIN (MIDI) 2 x XLR 4pin (desklight) |
| Input connectors | 1 x XLR 5pin (DMX) 1 x XLR 3pin (Sound) 1 x XLR 3pin (SMPTE) 1 x DIN (MIDI) 1 x Sub-D 25pol (Analogue Remote) 1 x powerCON |
