Small but powerful

The new MA 2Port Node onPC 2K, MA 2Port Node onPC 1K and MA 2Port Node set an additional benchmark in MA Lighting’s networking product range as they feature the 1Gbit capability. They allow the conversion of Ethernet data into DMX or vice versa and fit perfectly into the MA system and its MA-Net2 protocol which is based on this high speed to ensure maximum performance.

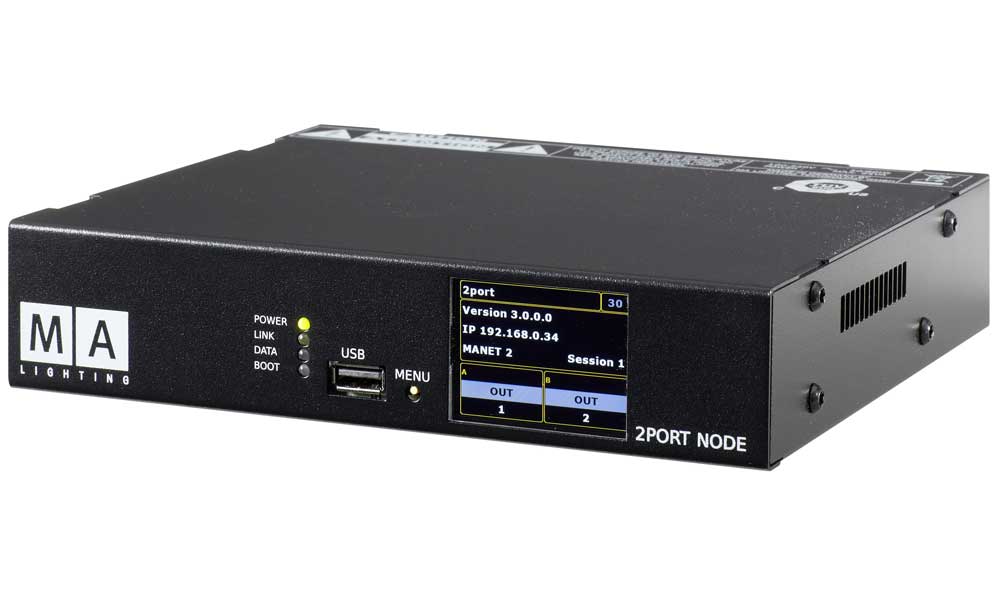

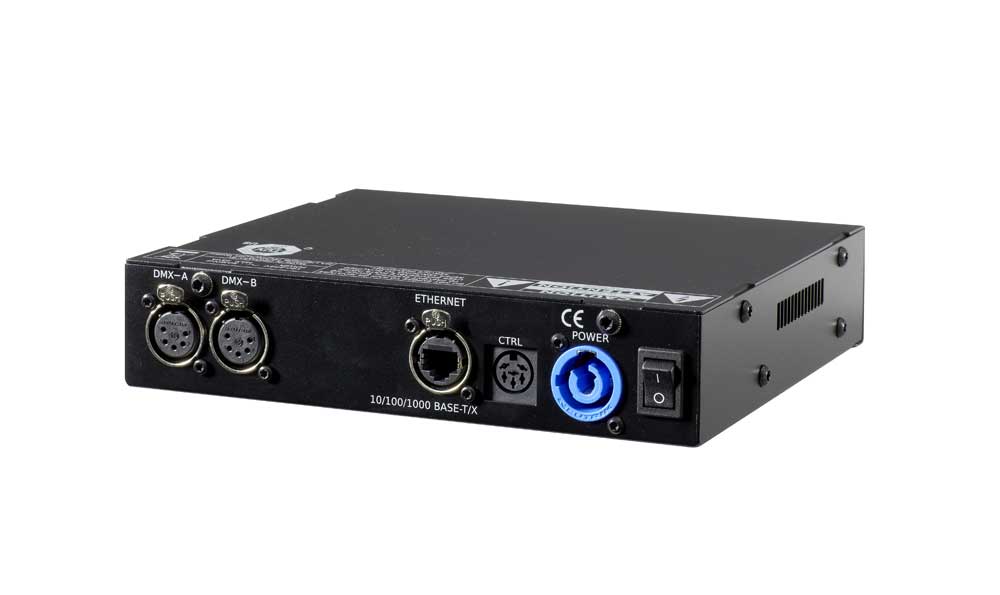

Optimised for touring and installations purposes, they have a rugged steel housing for a long life even under harsh conditions. The front panel offers a menu button, a USB connector and a 2" colour TFT as well as LEDs displaying the current status. All of these ensure a comfortable operation. The mains switch is located on the back, along with the powerCON and etherCON connectors, as well as the 2 DMX ports.

All MA 2Port Nodes are fully configurable from the grandMA2 consoles or from grandMA2 onPC. To achieve the highest flexibility, each DMX port can be individually configured as DMX in or DMX out.

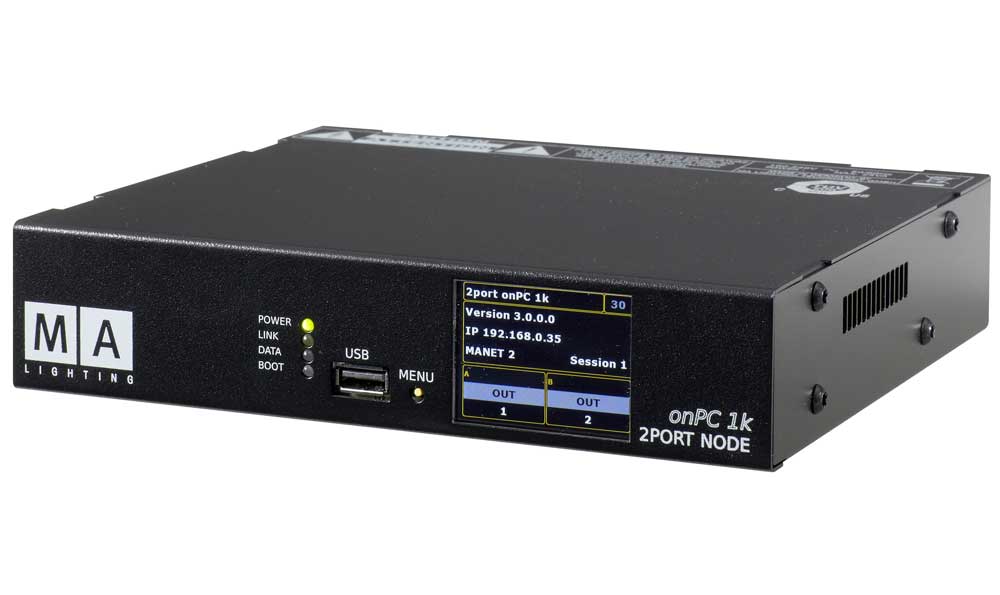

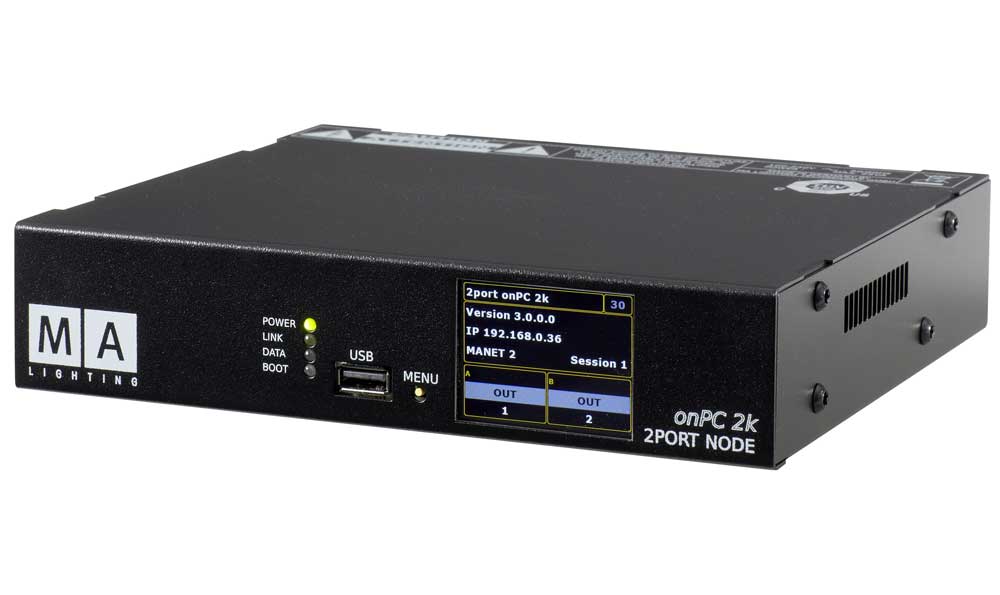

In combination with the free-of-charge grandMA2 onPC software the onPC versions offer parameter: MA 2Port Node onPC 2K = 2.048 Parameter; MA 2Port Node onPC 1K = 1.024 Parameter. Furthermore the MA 2Port Node onPC 2K and MA 2Port Node onPC 1K can be combined with the MA onPC command wing and MA onPC fader wing for parameter expansion.

Read more about the:

<link http: www.malighting.com en products control ma-lighting ma-2port-node-onpc-2k external-link-new-window external link in new>MA 2Port Node onPC 2K
<link http: www.malighting.com en products control ma-lighting ma-2port-node-onpc-1k external-link-new-window external link in new>MA 2Port Node onPC 1K
<link http: www.malighting.com en products network ma-lighting ma-2port-node external-link-new-window external link in new>MA 2Port Node
